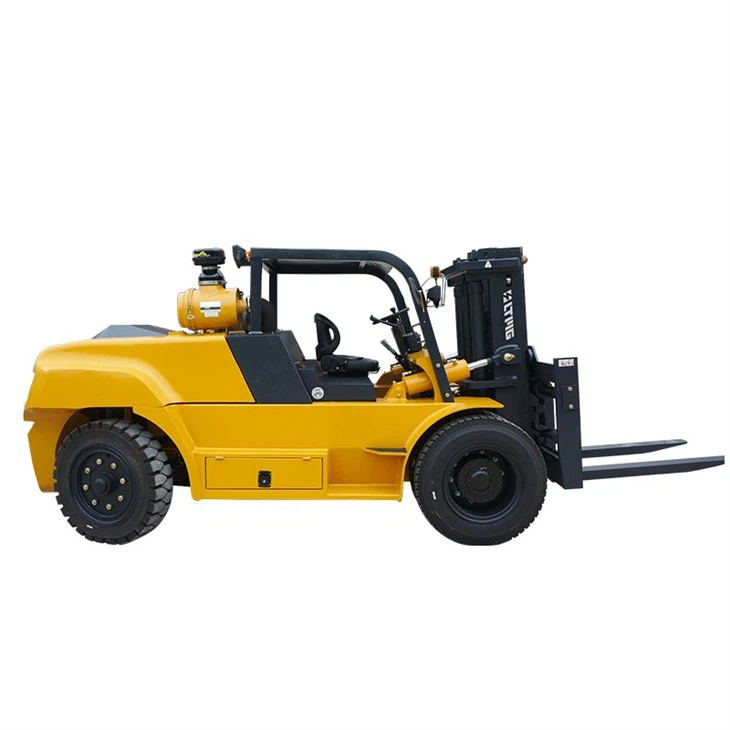

1. The FD100C container spec forklift truck has a low normal peak and a slim body, making it flawlessly ideal for operations with inner containers.
2. Equipped with an especially designed enlarged radiator, this forklift ensures non-stop operation inside containers by way of efficaciously managing heat.
3. It boasts a small turning radius and agile handling, allowing for unique and bendy actions in restrained spaces.
4. The forklift is geared up with a relaxed cabin, lowering operator fatigue and improving productivity over lengthy shifts.
5. Designed for long-term, high-intensity use, the forklift is constructed with high-strength substances that are resistant to wear and impact, ensuring durability and reliability.
Products Description
| Model | FD100C | ||
| Rated Capacity | kg | 10000 | |
| Load Center | mm | 600 | |
| Power Type | Diesel | ||
| Driving/Transmission | Turbo | ||
| Tire：L-Pneumatic V-Rubber | L.V | ||
| Number of tires (front/back) | 4/2 | ||
| Lifting Height | mm | 2300 | |
| Fork Size(L*W*T) | mm | 80X180X1500 | |
| Mast Tilt Angle (F/R) | drg | 6/12 | |
| Length to Face of Fork | mm | 4370 | |
| Overall Width | mm | 1940 | |
| Overhead Guard Height | mm | 2200 | |
| Mast Lowered Height | mm | 2220 | |
| Mast Extended Height | mm | 1140 | |
| Wheelbase | mm | 2800 | |
| Truckbase | mm | 1430/1670 | |
| Min. Ground Clearance | mm | 260 | |
| Min.Turning Radius | mm | 4200 | |
| Max.Lifting Speed(full load) | mm/s | 300 | |
| Max.Travel Speed(full load) | Km/h | 26 | |
| Max.Gradeability(full load) | % | 20 | |
| Service Weight | kg | 13000 | |
| Tire (F/R) | 8.25-20/8.25-20 | ||
| Tire Pressure(F/R) | MPa | 1/0.9 | |
| Transmission | YQX100 | ||
| Braking Distance( no load ) | 20Km/h | mm | ≤6000 |
|
Engine |
Model | YC6J125-T300 | |
| Rated Output | kw | 92 | |
| Rated torque | r.p.m | 2200 | |
| Battery Model/Capacity | AHV | 2X6-Q-80/12 | |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
