LTMG Machinery Group Co., Ltd. is one of the most reliable manufacturers and suppliers of fd30 3 ton diesel forklift in China. Please feel free to buy high quality fd30 3 ton diesel forklift for sale here from our factory. Good service and reasonable price are available.
Products Description

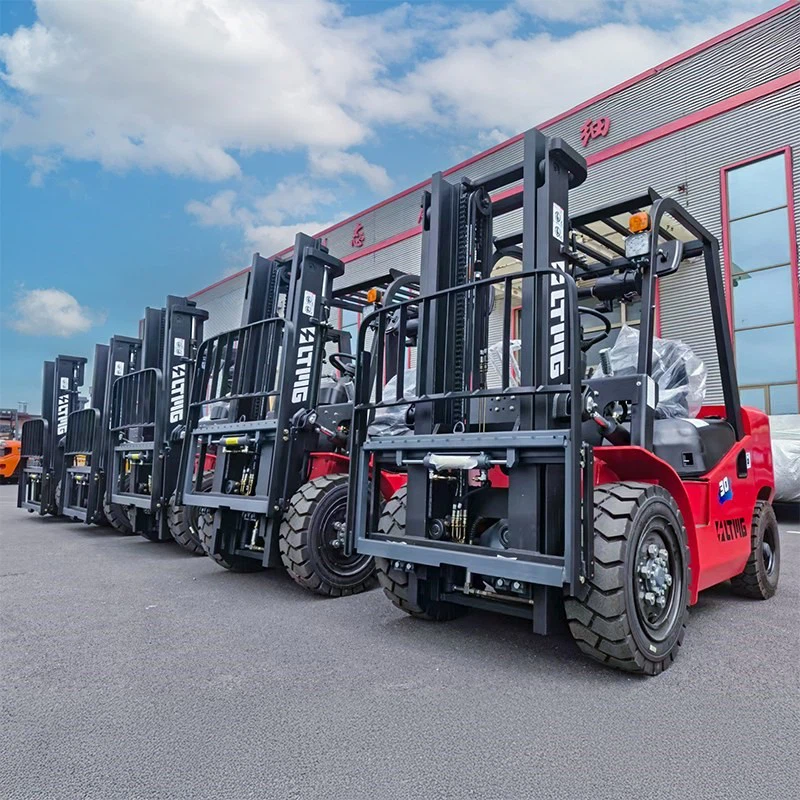

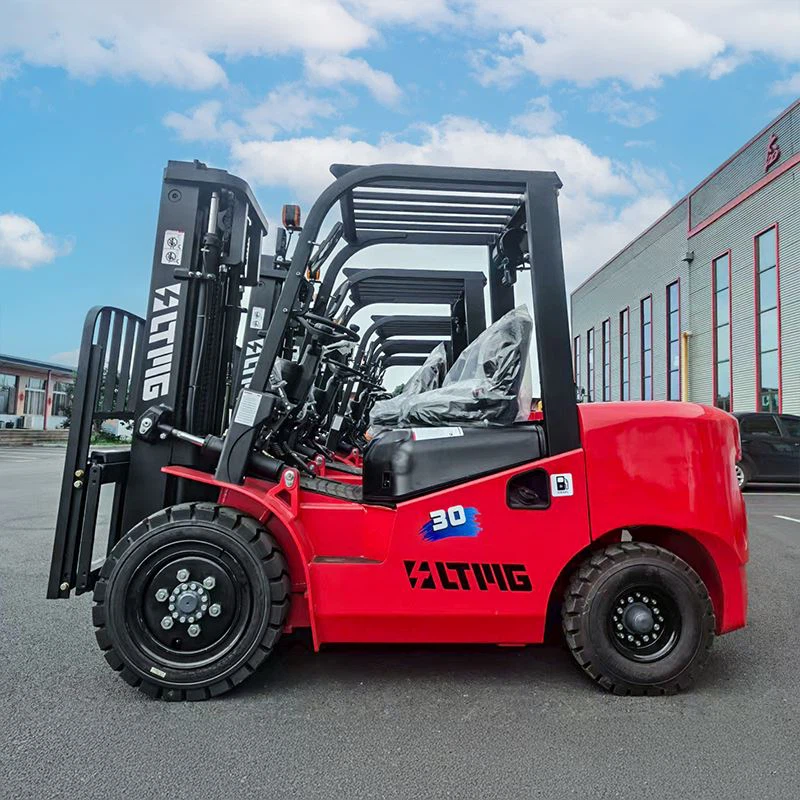

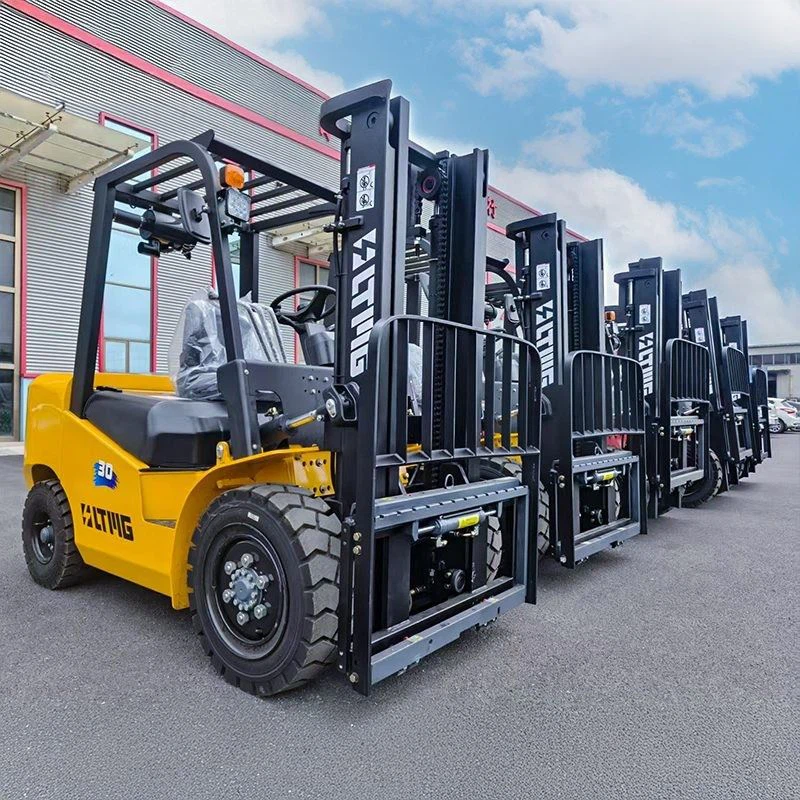

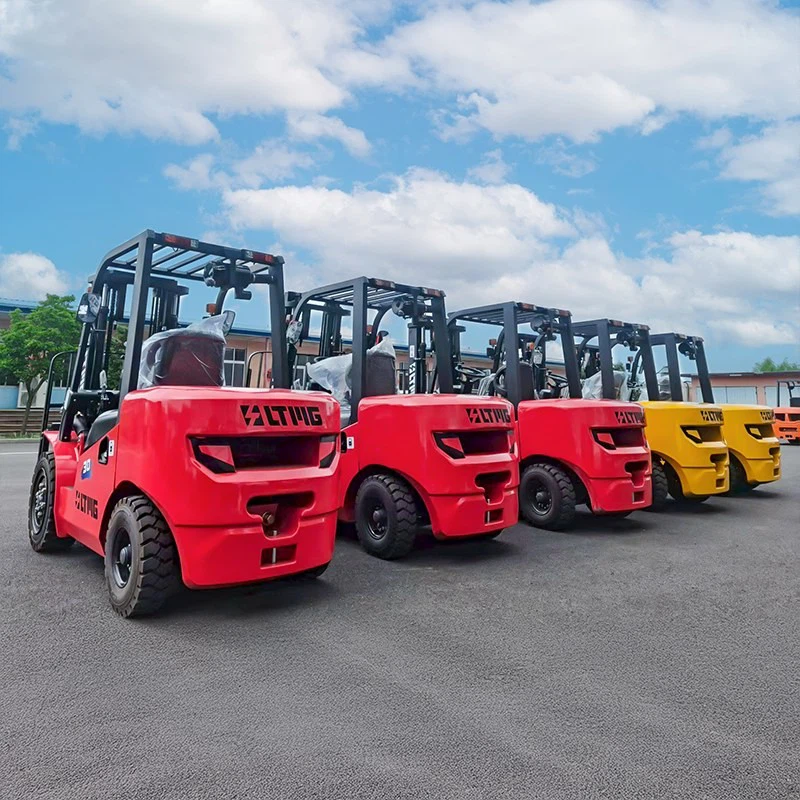

fD30 3-ton Diesel Forklift
- Powerful diesel engine delivers consistent torque for heavy-duty lifting and long-hour operations.
- Fuel-efficient design lowers operating costs and performs reliably across warehouses, factories, ports, and construction sites.
- Reinforced chassis and mast ensure exceptional durability and extended service life under tough working conditions.
- Optimized steering and ergonomic controls allow smooth maneuvering and comfortable operation throughout the day.
- Easy-access maintenance layout shortens service time and improves fleet uptime.
Products parameter
| Specification | FD30 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 3000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 100 |
| 6 | Fork dimension | mm | 1070×125×45 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2400 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3820 |
| 17 | Total length without fork | mm | 2750 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4350 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | Xinchai 4D27G31 | |
| 28 | Engine power | kw/r.p.m | 36.8 |
| 29 | Transmission | Mechanical/Hydraulic | |
| 30 | Work press | Mpa | 18.5 |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
Products Application
Guaranteed Delivery Assurance

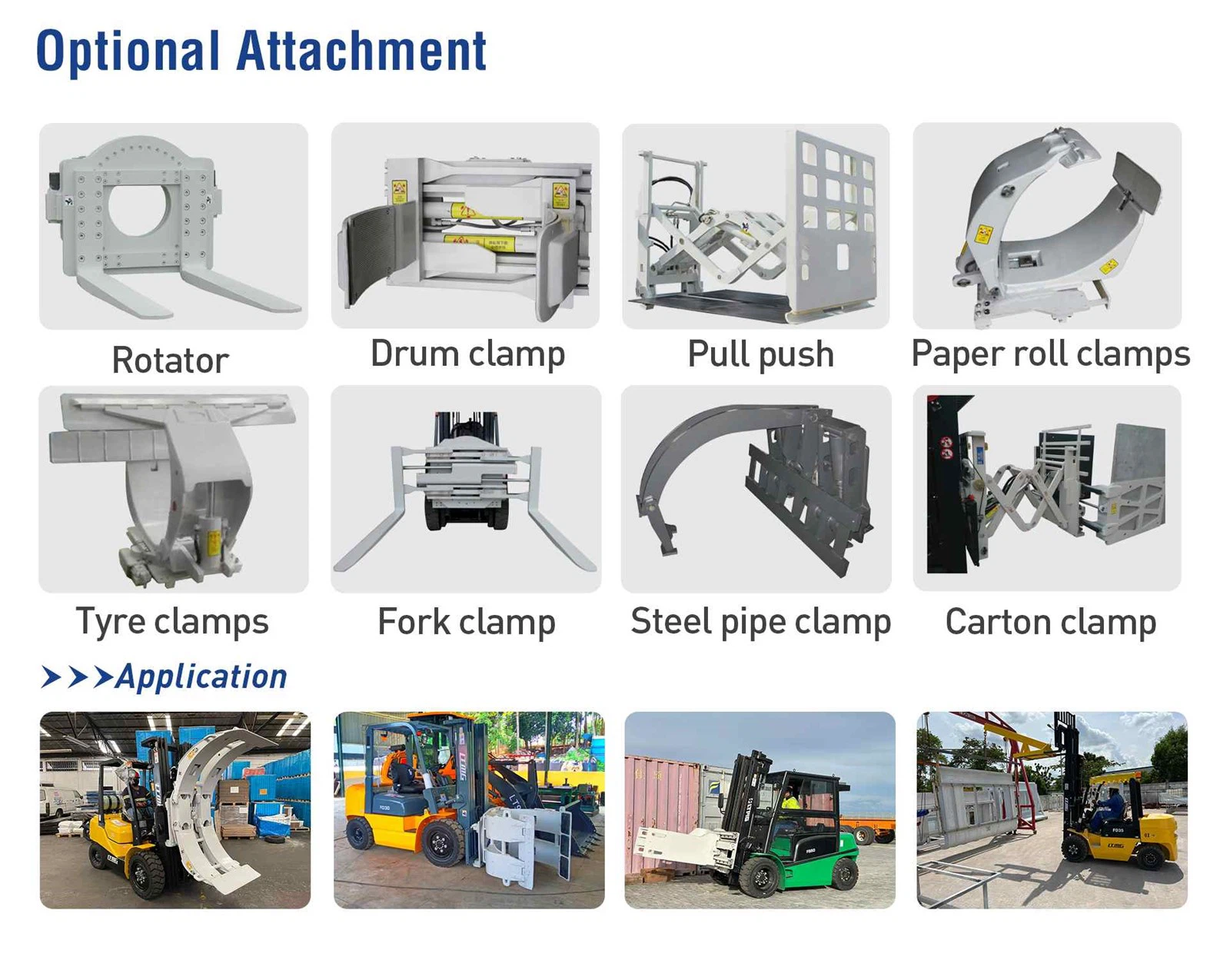

attachments for 3 Ton Diesel Forklift
The 3-ton diesel forklift can be equipped with a wide range of attachments, enabling true multi-function performance for different working scenarios. Whether paired with side shifters, fork positioners, clamps, or extensions, it easily adapts to handling pallets, blocks, pipes, bales, and more. One machine covers multiple jobs, improving versatility, efficiency, and overall productivity.
Products Description
FAQ
Q: How easy is routine maintenance?
A: Maintenance is designed for speed. A tilting cabin provides full access to the engine and hydraulics, while grouped service points make daily checks fast and simple.
Q: Forklift hard to start?
A: Check the fuel level and ensure the fuel lines are unobstructed; replace expired diesel.
Verify battery voltage and terminal condition; preheat the engine in cold environments.
Q: Insufficient power while driving?
A: Clean or replace clogged air and fuel filters.
Inspect injector atomization and avoid overloading operations.
Q: Poor braking performance or abnormal noise?
A: Replace brake pads that exceed wear limits and refill brake fluid.
Remove oil or dirt from brake components to keep friction surfaces clean.
Q: Forklift emits abnormal smoke?
A: Black smoke: Clean the air filter and adjust the injection timing.
Blue smoke: Check for engine oil leakage into the combustion chamber.
White smoke (after warming up): Inspect for water in the fuel or possible head gasket damage.
Q: Hydraulic system lifts slowly or fails to lift?
A: Refill or replace deteriorated hydraulic oil and clean the hydraulic filter.
Check for hydraulic line leaks; tighten fittings or replace sealing components.
