LTMG Machinery Group Co., Ltd. is one of the most reliable manufacturers and suppliers of 10ton large capacity diesel forklift with forkpositioner in China. Please feel free to buy high quality 10ton large capacity diesel forklift with forkpositioner for sale here from our factory. Good service and reasonable price are available. Some of the product features listed involve optional configurations. Please confirm the specific configuration with our international sales team.
Products Description

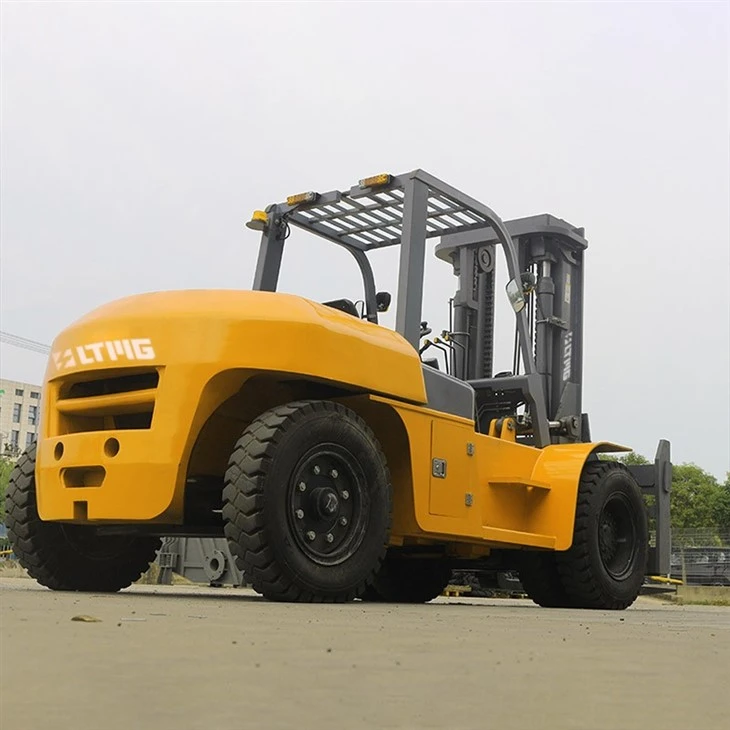

10-ton Large Capacity Diesel Forklift with fork positioner
In large warehouses and busy logistics centers, 10-ton large-capacity diesel forklifts excel at handling heavy pallets, containers, and bulky goods. Their high load capacity enables efficient movement of heavy materials, streamlining inventory management processes.
These large-capacity diesel forklifts are crucial on construction sites where they lift and transport heavy building materials such as steel beams, concrete blocks, and heavy machinery. Their rugged design withstands rough terrain and harsh conditions common in construction environments.
Products parameter
| Item | Specification |
|---|---|
| Model | FD100 |
| Power type | Diesel |
| Lift capacity | 10 000 kg |
| Load center distance | 600 mm |
| Battery (Voltage / Capacity) | 24 V / 100 Ah |
| Max. lift height | 3 000 mm |
| Free lift height | 195 mm |
| Mast tilt angle (F / R) | 6° / 12° |
| Lift speed (full / no load) | 350 / 390 mm/s |
| Lowering speed (full / no load) | 370 / 350 mm/s |
| Travel speed (full / no load) | 23 / 28 km/h |
| Min. turning radius | 4 100 mm |
| Gradeability (full / no load) | 20 % / 25 % |
| Max. drawbar pull | 70 kN |
| Service weight | 12 900 kg |
| Length (without forks) | 4 340 mm |
| Overall width | 2 200 mm |
| Mast height (lowered) | 2 850 mm |
| Overall height (overhead guard) | 2 560 mm |
| Load backrest height | - |
| Overall height at max. lift | 4 325 mm |
| Ground clearance (min.) | 250 mm |
| Wheelbase | 2 800 mm |
| Front tread | 1 600 mm |
| Rear tread | 1 725 mm |
| Front overhang | 740 mm |
| Rear overhang | 800 mm |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
Forklift advantage
Equipped with high-quality, imported motors, the electrically operated forklift guarantees unparalleled durability and superior performance. These motors, sourced from trusted international suppliers, are specifically engineered for heavy-duty applications, offering exceptional torque, high efficiency, and low noise levels. They withstand the rigors of continuous operation, ensuring reliable performance even in the most challenging industrial settings.
Quality guarantee
Real Customer Feedback
FAQ
Q: How long can I continuously use the device before it requires a cooldown or recharge?
Q: Does prolonged usage affect the device's performance or lifespan?
Q: How does varying usage conditions (e.g., temperature, humidity) impact device performance and durability?
