LTMG Machinery Group Co., Ltd. is one of the most reliable manufacturers and suppliers of ltpv0911 compact crawler self-propelled mast lifts in China. Please feel free to buy high quality ltpv0911 compact crawler self-propelled mast lifts for sale here from our factory. Good service and reasonable price are available.

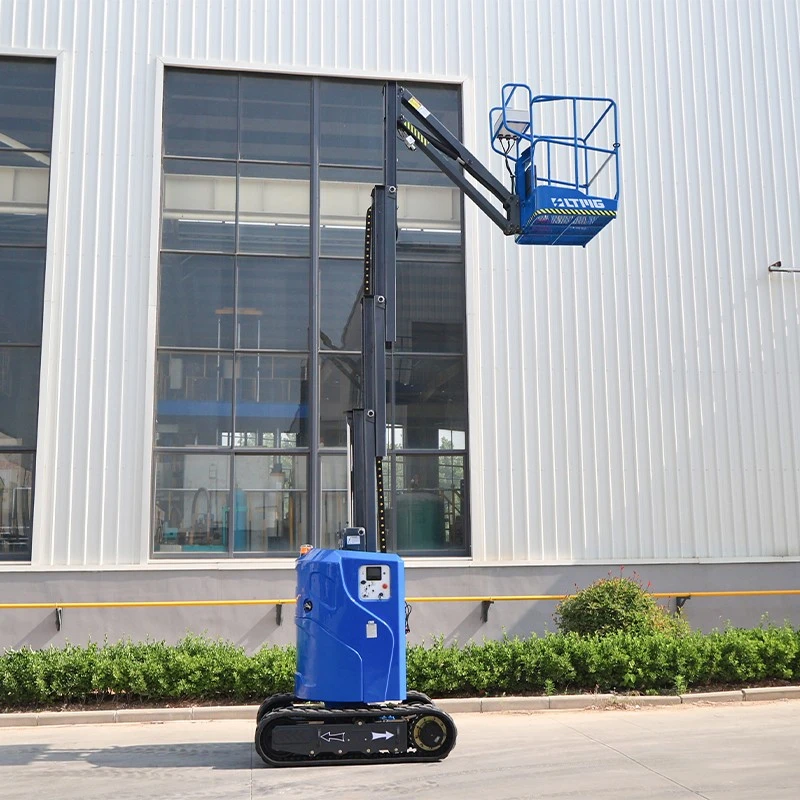

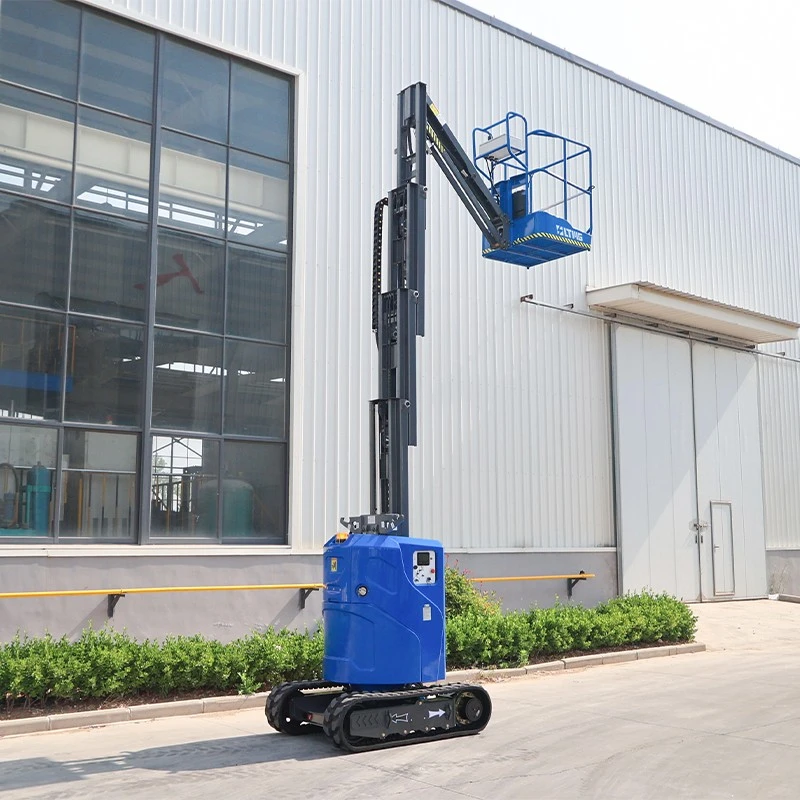

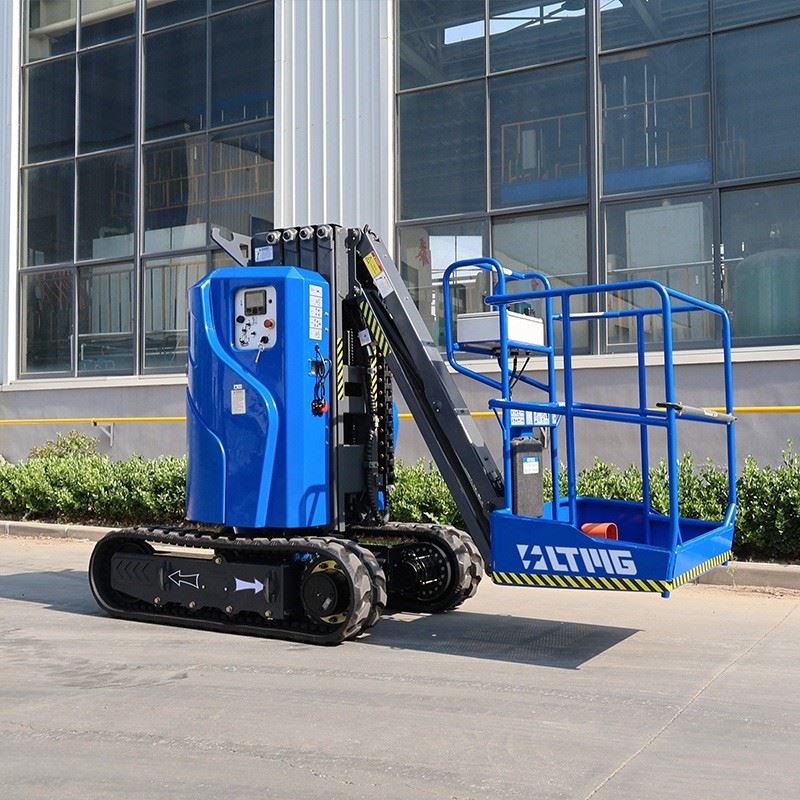

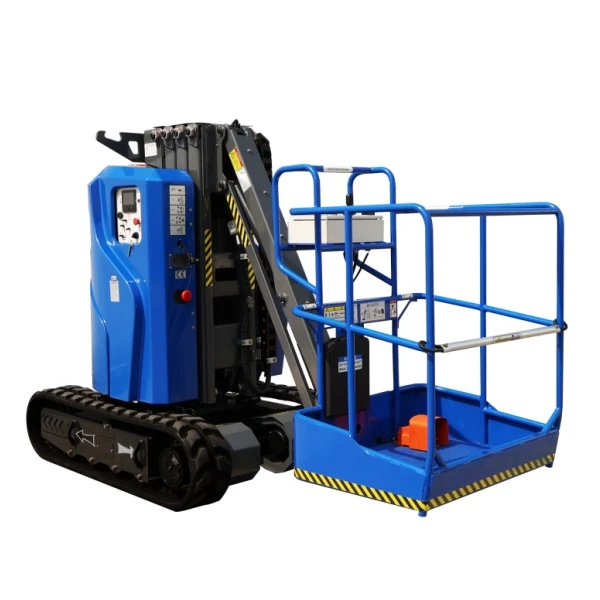

LTPV0911 Compact Crawler Self-Propelled Mast Lifts
Features & Parameters of Crawler Self-Propelled Mast Lifts
|
|
Value |
|
Max. Working Height |
9.2m |
|
Max. Platform Height |
7.2m |
|
Max. Horizontal Reach |
3.51m |
|
Overall Length (A) |
2.75m |
|
Overall Width (B) |
1.15m |
|
Overall Height (stowed) (C) |
1.98m |
|
Platform Dimension |
0.8×0.93m |
|
Ground Clearance (Stowed) |
85mm |
|
Ground Clearance (Raised) |
85mm |
|
Wheelbase (D) |
1.15m |
|
Loading Capacity |
200kg |
|
Occupants |
2 |
|
Turrer Rotation |
220° |
|
Max. Working Slope |
X-2° Y-2° |
|
Travel Speed (Stowed) |
1.6km/h |
|
Travel Speed (Raised) |
0.9km/h |
|
Tyres |
230×90×92mm |
|
Driving Motor |
32V/4kW |
|
Lifting Motor |
48V/3kW |
|
Battery |
48V/220Ah |
|
Charger |
48V/35A |
|
Weight |
2800kg |
Full-Height Drivability for Maximum Efficiency
Full-height drivability allows travel at maximum elevation, combined with 220° turret rotation and proportional controls for enhanced productivity and coverage.
Comprehensive Safety Protection
Multi-layer safety systems, including automatic braking, tilt alarm, explosion-proof tubing, emergency descent, and overload detection, ensure operator and equipment safety.
All-Terrain Versatility
Track drive with non-marking tyres adapts to rough terrain while protecting floor surfaces, suitable for both indoor and outdoor applications
*With technological innovation, our product configuration and parameters will continue to change without notice. If there is any doubt, the specific confirmation of our international trade sales shall prevail.

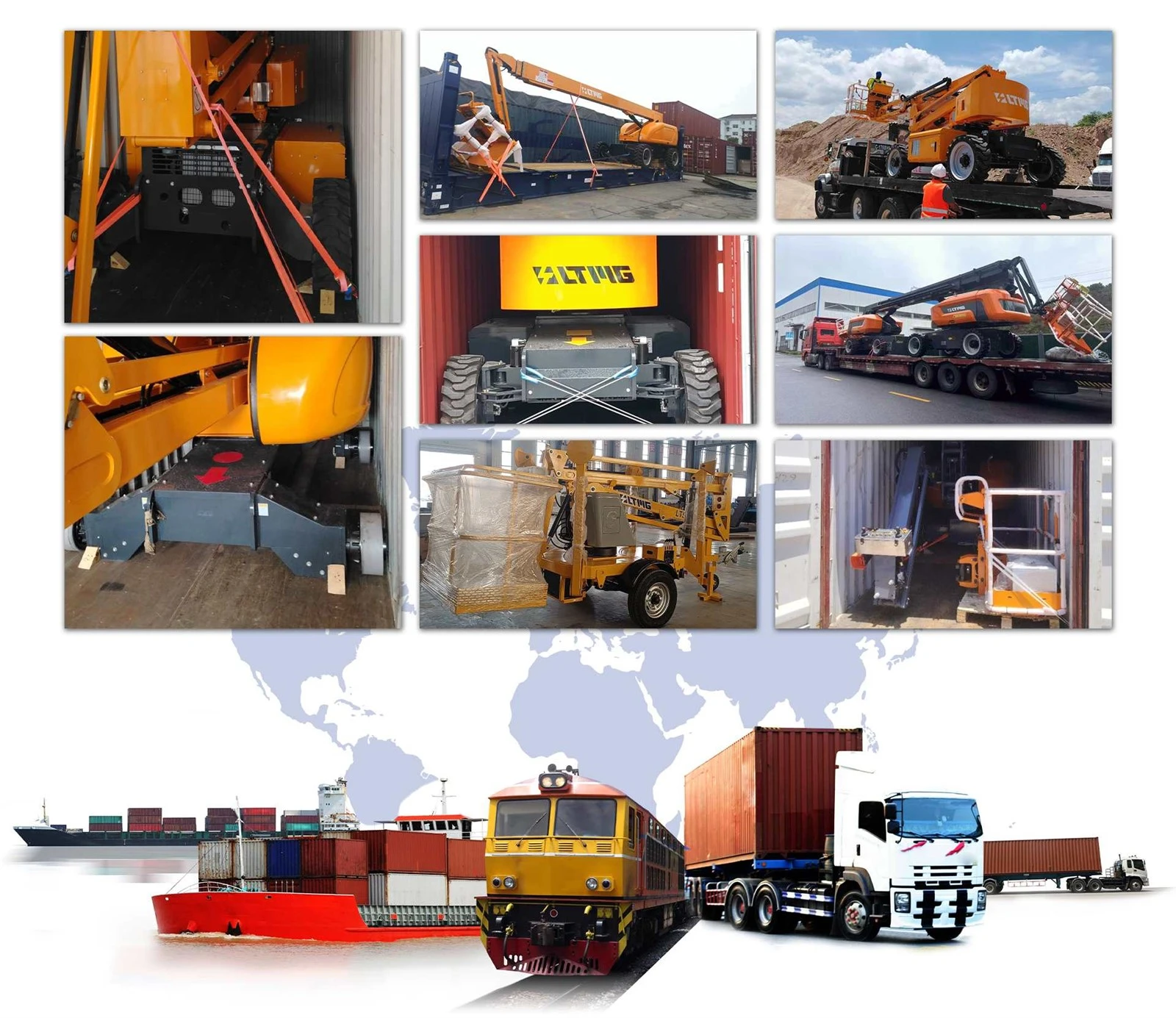

Full Shipping Support for Crawler Self-Propelled Mast Lifts
Reliable Manufacturing Strength
As a professional Chinese mast lifts supplier, we specialize in designing and manufacturing reliable vertical access solutions for global markets. With a strong focus on safety, performance, and compliance with international standards, our mast lifts are widely used in warehousing, maintenance, and industrial applications. Backed by advanced production facilities and experienced engineering teams, we provide stable quality, flexible configurations, and dependable global delivery to support our customers' projects worldwide.
Built to Certified Standards
FAQ
Q: What applications are mast lifts suitable for?
A: Mast lifts are ideal for indoor and light outdoor tasks such as warehouse picking, facility maintenance, electrical installation, and overhead inspections.
Q: What working heights and load capacities are available?
A: Working heights typically range from 6 to 14 meters, with load capacities designed to safely support operators and tools. Exact specifications depend on the model.
Q: Are your mast lifts certified to international standards (CE / ISO)?
A: Yes. Our mast lifts are manufactured in compliance with international standards and are certified with CE and ISO to meet global market requirements.
Q: Are the mast lifts suitable for indoor and outdoor use?
A: They are primarily designed for indoor use but can also operate outdoors on flat, stable surfaces, depending on the model and conditions.
Q: How easy is maintenance and daily operation?
A: Mast lifts are designed for simple operation and low maintenance, with easy access to key components and clear daily inspection points.
