Introducing the 8 Ton Empty Container Handler - a high-efficiency solution built to optimize container yard operations. Designed for fast handling of empty containers, it delivers outstanding productivity, safety, and long-term reliability for port terminals, logistics depots, and container yards.
1) Easy Maintenance for Higher Uptime
All key maintenance points are centrally arranged and easily accessible, allowing quick servicing and reducing downtime. The extended maintenance cycle keeps your equipment running longer and boosts fleet availability.
2) Smart, Ergonomic Cab for Better Control
The newly upgraded smart cab features an ergonomic layout, giving the operator smooth and precise control through aviation-style joysticks. The cab can be configured on a fixed mount or a track-mounted hydraulic sliding system for improved visibility and easier operation.
3) Multiple Safety Protections
Safety remains a top priority. The machine meets standard safety requirements and can be equipped with additional protection features such as a backup camera, LED working lights, and a speed limiter - helping safeguard both operators and personnel on site.
4) Heavy-Duty Structure for Harsh Working Conditions
The upgraded Smart Series adopts a reinforced steering axle, drive axle, lifting chain, and lifting system. Even when stacked to maximum height, the heavy-duty design ensures superior stability, smoother lifting, and safer container stacking in tough environments.
Choose the 8 Ton Empty Container Handler for efficient, safe, and reliable container stacking operations. With smart controls, easy maintenance, enhanced safety, and a heavy-duty build, it delivers effortless handling and long-term value for your container yard.
Products Parameter
| Model | CH80 |
| Rated lifting capacity | 8000kg |
| load center | 1295mm |
| Front overhang | 1198mm |
| wheelbase | 4520mm |
| dead-weight | 35880kg |
| Height when the gantry is retracted | 3/4 |
| Maximum lifting height (to rotary lock) h3 | 11111mm |
| The maximum height of the gantry during homework | 19244mm |
| Height of roof protection frame (cab) | 4326mm |
| Driver's seat height above ground | 3226mm |
| overall length | 6850mm |
| Vehicle length (excluding forks) | 6682mm |
| Overall Width | 2570mm |
| 20 '/40' sling width | 12150mm |
| Ground clearance of the front axle | 370mm |
| Wheelbase center ground clearance | 380mm |
| Channel width (20-foot container) | 9900mm |
| Channel width (40-foot container) | 13500mm |
| Turning radius | 6300mm |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.

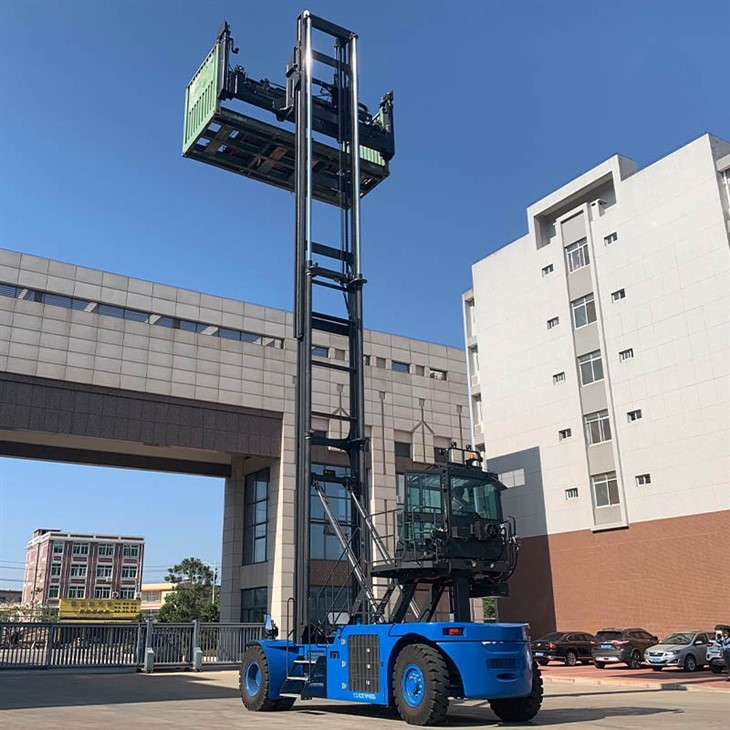

Showcase of Container Handler Empty Container Stacker
Flexible customization
FAQ
Q: What makes the maintenance of this container handler easier?
Q: How does the smart cab design enhance the handling of the container handler?
Q: How long has LTMG been in the business?
Q: Are there different types of scissor lift platforms?
