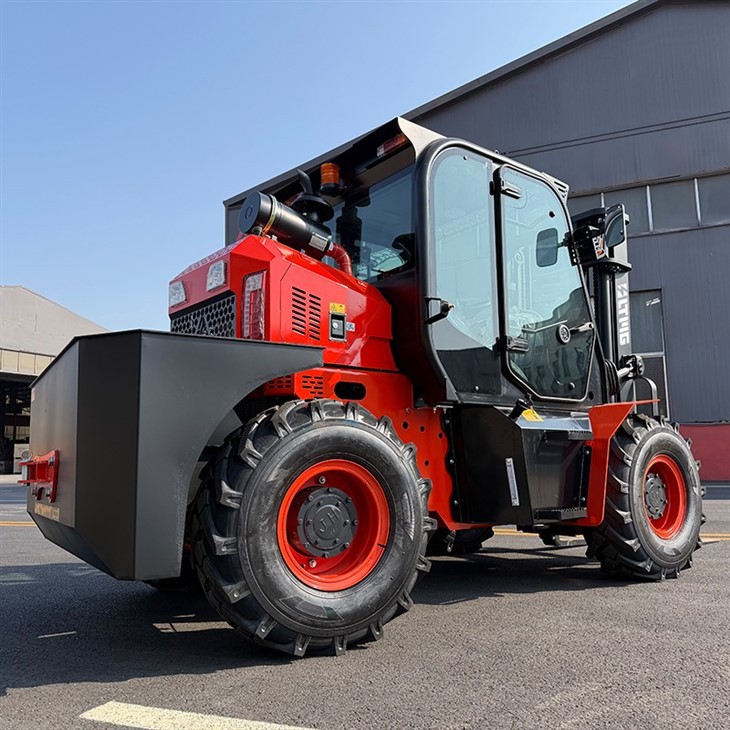

LTMG Machinery Group Co., Ltd. is one of the most reliable manufacturers and suppliers of 3.5 ton rear-wheel-articulated off-road forklift in China. Please feel free to buy high quality 3.5 ton rear-wheel-articulated off-road forklift for sale here from our factory. Good service and reasonable price are available.
Parameters
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
With technological innovation, our product configuration and parameters will continue to change without notice;
|
Model |
LTR35 |
|
Rated Load Capacity |
3500kg |
|
Rated Lifting Height |
3000-6000mm (optional) |
|
Load Center Distance |
600mm |
|
Minimum Turning Radius |
2600mm |
|
Maximum Gradeability |
≤38° |
|
Minimum Ground Clearance |
350mm |
|
Mast Forward/Backward Tilt Angle |
10.0°/8.0° |
|
Maximum Travel Speed |
38km/h |
|
Maximum Drawbar Pull |
25.0kN |
|
Engine Model |
Quanchai/Yunnei China IV 493 (36.8kW) |
|
Drive Mode |
4-Wheel Drive |
|
Transmission Model |
265 Dual High-Low Speed Hydraulic Torque Converter |
|
Axle Model |
Heavy-Duty Integrated Cast Steel Wheel Reducer Axle |
|
Tire Model |
23.5/70-16 Reinforced Type |
|
Wheelbase |
1950mm |
|
Mast Steel Width |
160mm |
|
Fork Length |
1220mm (optional) |
|
Operating Weight |
4500kg |
|
Overall Dimensions |
3400*1830*2300mm |
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
With technological innovation, our product configuration and parameters will continue to change without notice;
Powerful 4WD Performance: Unmatched Climbing & Traction
The four-wheel drive configuration ensures the LTR35 delivers ample power to tackle steep grades and maintain steady traction on slippery, muddy, or loose-gravel surfaces.
Rugged All-Terrain Traversal: High Clearance & Specialized Tires
Featuring high ground clearance paired with professional off-road tires, this 3.5-ton forklift effortlessly navigates challenging obstacles and uneven landscapes that would stop standard machines.
Heavy-Duty Stability: Optimized for Reliable Outdoor Handling
Engineered for stable heavy-duty performance, our 3.5t model offers enhanced load-bearing capacity, ensuring safe and efficient material handling and loading/unloading on irregular outdoor terrains.
All-in-One Versatility: Multi-Functional Attachment Support
To meet your diverse operational needs, the LTR35 supports switching between multiple specialized attachments, allowing one machine to perform tasks ranging from pallet lifting to bulk material handling.
Effortless Operation: Low Learning Curve, Maximum Productivity
The simple and intuitive control layout allows operators to master the machine quickly, significantly boosting daily work efficiency and reducing training time for your team
Company Profile
LTMG MACHINERY GROUP CO.,LTD.
LTMG Machinery Group Co.Ltd was founded in 2001,and it is a modern,large-scale machinery manufacturing en-terprise speciatizing in theproduction of construction machinery.The company is headquartered in xiamen, and has production bases for loaders,forklifts,excavators and other equipment in Xiamen and Shandong and many other places. with a total factory area covering 100000 squaremeters.We boast 8 complete mechanical production lines,with an annual production capacity of up to 20000 units of equipment.
100000 ㎡
total area
20000+
total annual output
100+
advanced equipments
180
export countries and regions
Certificates
customer feedback
attachments
FAQ
Can these forklifts operate effectively in muddy or uneven outdoor conditions?
Yes. Exceptional traversal is a core feature of our series. The LTR35 features a 350mm high ground clearance paired with 23.5/70-16 reinforced off-road tires, while the LTR15 offers 250mm of clearance. This combination prevents chassis bottoming and ensures excellent traversal capabilities over mud, rocks, and challenging outdoor terrains, maintaining a fastest running speed of 30-38 km/h for efficient site transit.
Are the LTR series forklifts maneuverable enough for confined workspaces?
Despite their rugged build, these machines are remarkably agile. The articulated steering structure (or rear-wheel articulated design) makes the machines flexible and compact. The LTR35 boasts an incredibly tight minimum turning radius of 2600mm, while the LTR15 is 2800mm. This allows operators to navigate narrow farm lanes or crowded outdoor storage yards with precision and ease.
How versatile are these machines for different industrial applications?
The LTR series is designed to be a multi-functional workhorse. We support switching between multiple attachments (such as side shifters, buckets, or specialized clamps) to meet diverse operational needs across forestry, mining, and construction. Furthermore, the simple and intuitive operation ensures a low learning curve for new drivers, resulting in high daily work efficiency and reduced downtime.
What checks are needed before starting a diesel forklift daily?
It is necessary to check if the fuel quantity, engine oil level, and coolant quantity are sufficient; inspect the tire pressure and wear condition to ensure there is no looseness or damage; check if the braking system is sensitive and if the hydraulic system has oil leakage; clean up debris around the engine and confirm that all instrument indicator lights are normal.
