LTMG Machinery Group Co., Ltd. is one of the most reliable manufacturers and suppliers of off-road forklift 3.5 ton 4wd in China. Please feel free to buy high quality off-road forklift 3.5 ton 4wd for sale here from our factory. Good service and reasonable price are available.
Products Description

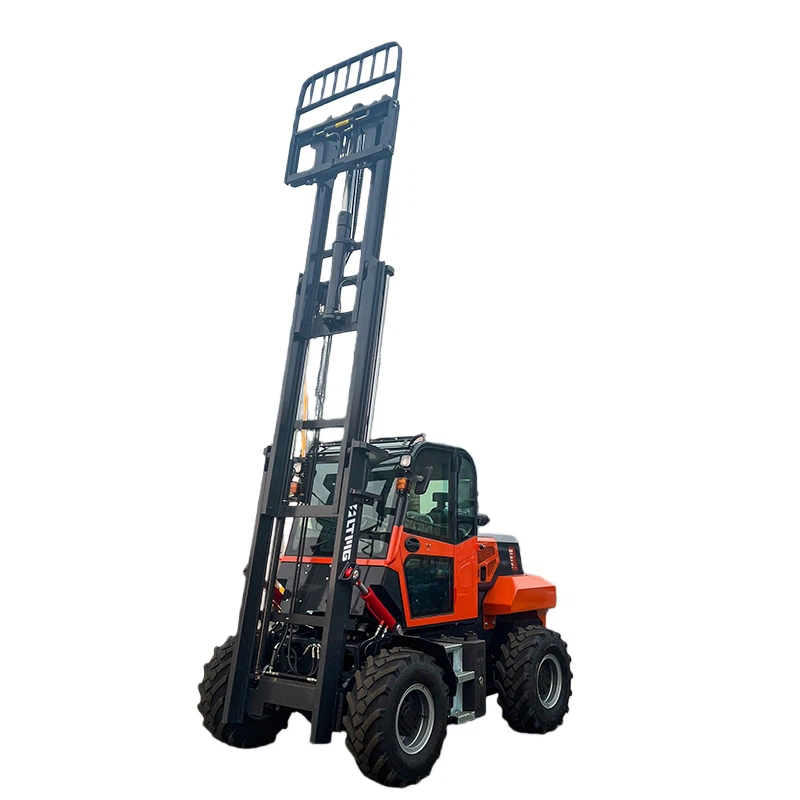

LTR35 Off-Road Forklift 3.5 ton 4WD
- Powerful 4WD Traction
Delivers a strong grip and stability on mud, gravel, slopes, and rough terrains.
- Reinforced Chassis & High Ground Clearance
Heavy-duty frame and elevated clearance ensure durability and smooth operation on uneven ground.
- Large Off-Road Tires for Superior Mobility
Deep-tread tires enhance traction and maneuverability in challenging outdoor environments.
- Strong Power & Smooth Hydraulic Control
Reliable engine output combined with precise hydraulic control improves efficiency and handling safety.
Power Type
Rated Load
Load Center Distance
Rated Power
Products Parameters
|
Model |
unit |
LTR35(Integrated rear steering) |
|
Power Type |
/ |
diesel |
|
Rated Load |
kg |
3,500 |
|
Load Center Distance |
mm |
500 |
|
Mast Height |
mm |
2 sections x 3000 |
|
Max. Lift Height |
mm |
3500-7000 |
|
Fork Dimensions |
mm |
1220*120*45 |
|
Mast Tilt (Forward/Rearward) |
deg |
8°/ 11° |
|
Front Overhang |
mm |
589 |
|
Rear Overhang |
mm |
1,027 |
|
Steering Cylinder |
Φ |
63 |
|
Tilt Cylinder |
Φ |
70 |
|
Front |
23.5-70-16 Human-shaped tire |
|
|
Rear |
23.5-70-16 Human-shaped tire |
|
|
Wheelbase |
mm |
/ |
|
Min. Ground Clearance |
mm |
250 |
|
Diesel Tank Capacity |
L |
70 |
|
Hydraulic Oil Capacity |
L |
65 |
|
QUANCHAI 493 |
QUANCHAI 493 |
|
|
Rated Power |
KW |
37 |
|
Length |
mm |
3,508 |
|
Width |
mm |
1,820 |
|
Height |
mm |
2,420 |
|
Min. turning radius inside |
mm |
3,000 |
|
Max. travel speed (loaded/unloaded) |
Km/h |
30/33 |
|
Max. lifting speed (loaded/unloaded) |
mm/s |
400/450 |
|
Max. lowering speed (loaded/unloaded) |
mm/s |
320 |
|
Free lift height |
mm |
17 |
|
Without counterweight |
kg |
4,500 |
|
counterweight |
kg |
400 |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.

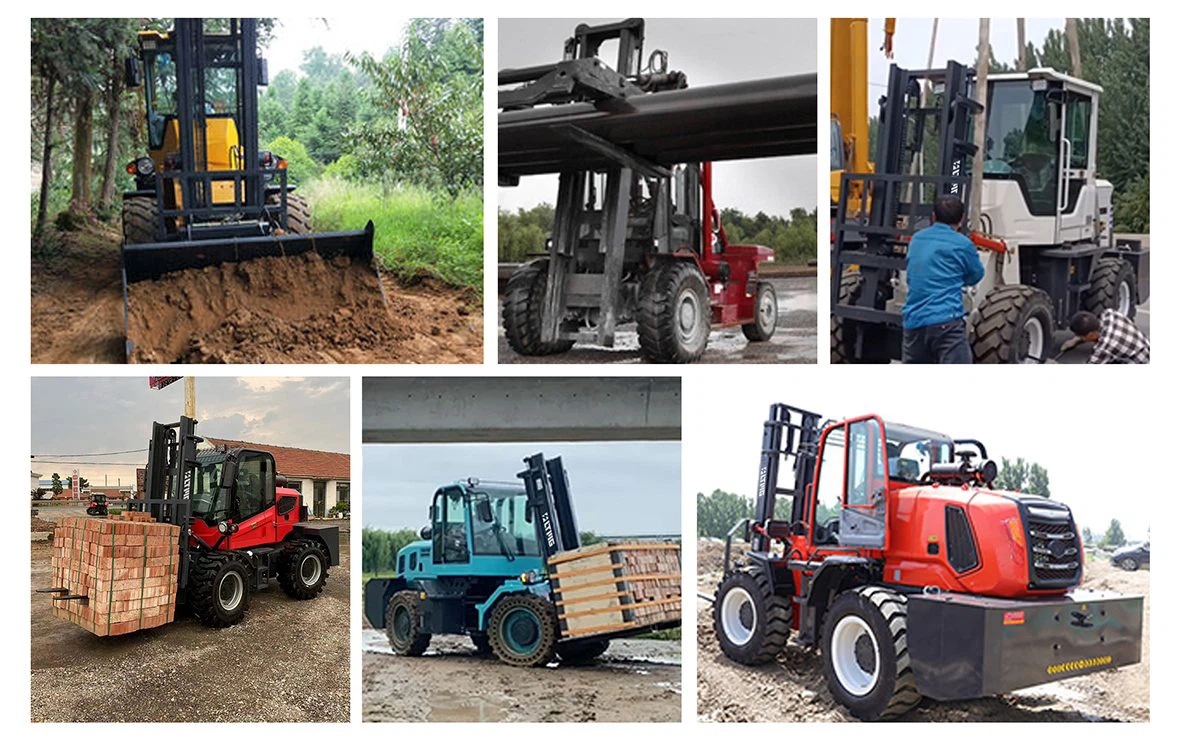

Wide Application Range
Rough terrain forklifts are engineered to handle the toughest outdoor conditions with ease. From construction sites and lumber yards to farms and ports, they provide reliable lifting and transport solutions on uneven, muddy, or gravel surfaces. Equipped with 4WD traction, large off-road tires, and a reinforced chassis, these forklifts ensure stability, efficiency, and safety across a wide range of applications, making them the ideal choice for demanding outdoor operations.
