LTMG Machinery Group Co., Ltd. is one of the most reliable manufacturers and suppliers of erb12 1.2 ton pallet stacker agv in China. Please feel free to buy high quality erb12 1.2 ton pallet stacker agv for sale here from our factory. Good service and reasonable price are available.
Products Description

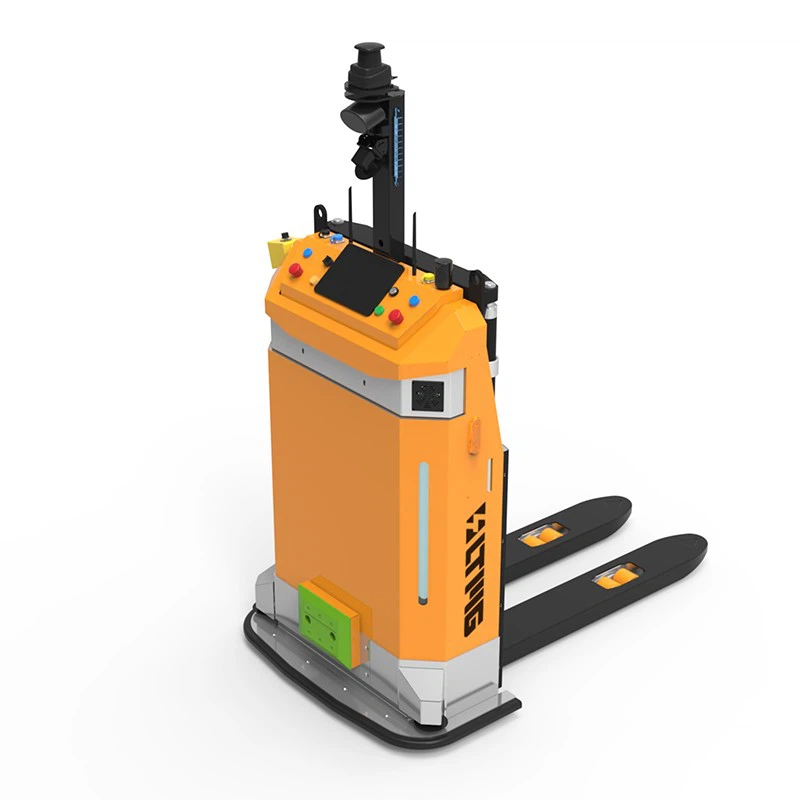

- All-Weather Automated Operation: This fully intelligent pallet-handling forklift-style AGV effectively optimizes processes and significantly improves logistics throughput efficiency.
- Three-Dimensional Obstacle Avoidance System: Equipped with dual low- and high-position obstacle avoidance radars, it provides comprehensive safety protection in the three-dimensional area in front of the vehicle.
- Compact and Flexible Design: The machine features a compact structure and a small turning radius, enabling it to adapt flexibly to various confined operating environments.
- Cargo Feed Direction Sensing: The vehicle's feed direction is precisely adjusted to match the fork position, automatically adapting to the target cargo and eliminating cumulative errors.
Products Description
|
Product Model |
FEP12-AGV |
|
Driving mode |
Electric |
|
Rated load |
1200kg |
|
Load center distance |
600mm |
|
Wheelbase(±5mm) |
950mm |
|
Dead weight (with standard battery) |
820kg |
|
Height, mast lowered |
1507mm |
|
Lifting height |
1600mm |
|
Height, mast extended |
2180mm |
|
Height, lowered |
86mm |
|
Overall length |
1682mm |
|
Overall width |
1010mm |
|
Fork dimensions |
66mm/180mm/1150mm |
|
Distance between fork-arms |
560mm/680mm |
|
Ground clearance, centre of wheelbase |
30mm |
|
Turning radius (minimum) |
1266mm |
|
Travel speed, laden/unladen |
4km/h 4.5km/h |
|
Lift speed, laden/unladen |
90mm/s 120mm/s |
|
Lowering speed, laden/unladen |
125mm/s 80mm/s |
|
Service brake |
Electromagnetic braking |
|
Drive motor rating |
1.5kw |
|
Lift motor rating |
2.2kw |
|
Battery voltage/nominal capacity K5 |
24V/100AH |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
Products Description
The AGV Stacker is designed for automated material handling in warehouses, production lines, and distribution centers. It efficiently lifts, stacks, and transports pallets with high accuracy, reducing labor intensity and improving overall operational safety. Ideal for narrow aisles and high-frequency handling tasks, it helps businesses achieve smarter, more reliable, and fully automated logistics workflows.
Products Description
FAQ
Q: What is an AGV forklift?
A: An AGV forklift is an automated guided vehicle designed to lift, move, and transport pallets or goods without human operation, following preset paths or navigation systems.
q: What navigation methods does your AGV forklift support?
A: It can support laser SLAM, magnetic tape, QR code, or hybrid navigation depending on customer needs and site conditions.
q: What is the load capacity range?
A: Models typically range from 1 ton to 3 tons, with customized solutions available for heavier loads.
Q: What is the maximum lifting height?
A: Standard lifting heights range from 1.6m to 6m, depending on the mast type and model configuration.
q: Does it support narrow-aisle operation?
A: Yes, the AGV forklift is designed for narrow aisles and high-density storage, optimizing warehouse space.
